KX-36J High-Precision CNC Lathe

Model: KX-36J High-Precision

Ideal for φ35mm bars and φ50mm parts, equipped with 4,000 RPM spindle, power turret, and rigid base for heavy-duty turning and milling.

Bar Materials : up to φ35mm

Max swing diameter: φ300mm

X-axis travel: 600mm

Z-axis travel: 230mm

Get Instant Quote

Technical Parameters Standard Value Maximum Value
Processing Capability
Spindle bore φ35 mm –
Maximum particle diameter 120 mm 150 mm
Maximum length of workpiece to be processed 180 mm 210 mm
Unilateral stock removal of stainless steel 2 mm 2.5 mm
Accuracy   ±0.01mm –
Surface finish Ra 1.6 –
Height of tool carrier center 40 mm –
Maximum rotation diameter φ300 mm –
Tool holder specification 16 mm × 16 mm –
Travel
X axis travel  600 mm –
Z axis travel 230 mm –
Feed
X-axis fast movement speed 18m/min 30m/min
Z-axis fast movement speed 18m/min 30m/min
X axis servo power 1.2 kW –
Z axis servo power 1.2 kW –
Spindle
Spindle speed 3500 rpm 4000 rpm
Spindle motor power 3.0 kW –
Spindle nose A2-4 –
Size of applicable hydraulic chucks 5 inch 6 inch
Dimensional & Weight
Dimensions 1750×1400×1800 mm –
Weight 1800KG –

Specification  Standard Optional
CNC Control System NANJINGKT  SYNTEC/GSK/LNC
Screw 25 mm C3-grade ball screw –
Guide rail 25 mm P-grade linear guide –
Spindle bearing 7015/7013 P5-grade angular contact ball bearing
Spindle motor 3.0 kW motor 3.7 kW servo motor
Feed servo motor 1.2 kW servo motor –
Tpye of bed 30° Slant bed –
Base Structure Patented anti-deformation base –
Clamping  Hydraulic clamping –

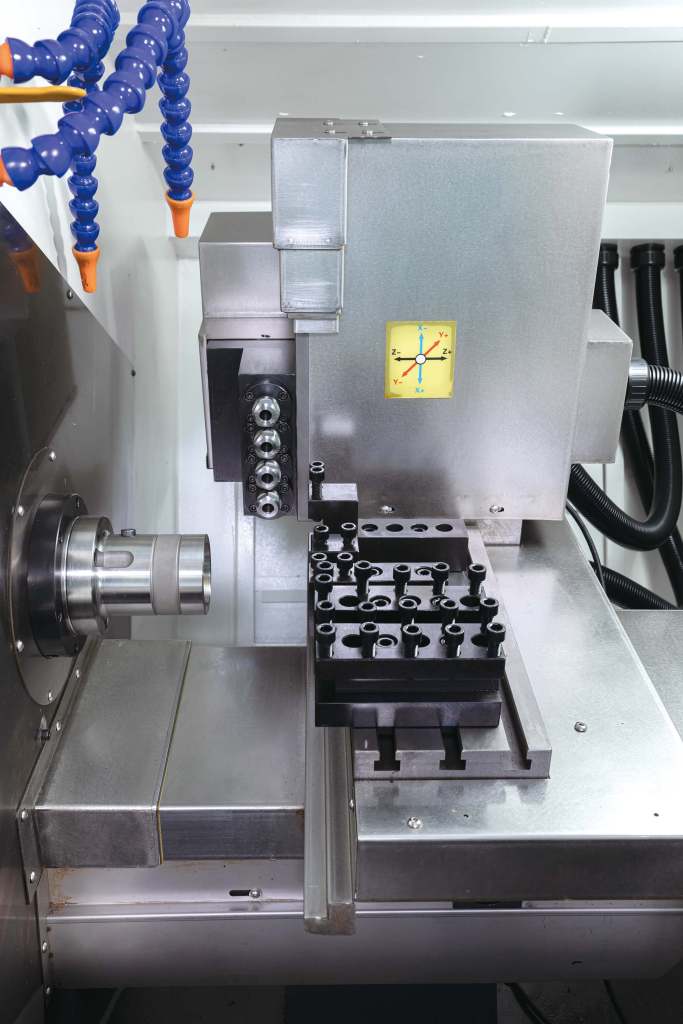

  • KX-36J is competent to handle turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ35 mm or single work pieces up to φ50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.
  • Adopting the Yashu’s exclusive control system and electric package to achieve the greatest efficiency of electro-mechanical coordination.
  • It comes with a high speed spindle with 4,000 rpm, providing 3 kW or 3.7 kW powerful output, and patented anti-deformation base to ensure stability for heavy-duty machining.
  • It is a multi-positions turret, polygon milling device for knurling, threading, and face milling on the end surface.
36J Live Tooling
Auto Bar Feeder
Automatic Feeding System
Guide Bush
Hydraulic Chuck
Polygon Milling
Servo Turret
Tool Setter
CNC Robot Arm
