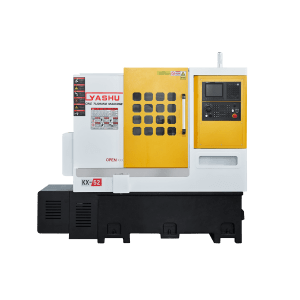

KX-46J Y-AXIS (4+4 Tools)

Advanced Y-axis lathe with 8-tool configuration and live tooling for complex, multi-axis milling and turning.

Bar Materials : up to φ 45mm

Max swing diameter: φ520mm

X-axis travel: 1000mm

Z-axis travel: 400mm

Technical Parameters	Standard Value	Maximum Value
Working Ability
Spindle bore	φ45 mm	–
Maximum particle diameter	150 mm	200 mm
Maximum length of workpiece to be processed	100 mm	130 mm
Unilateral stock removal of stainless steel	3 mm	4.5 mm
Accuracy	±0.0075 mm	–
Surface finish	Ra 1.6	–
Height of tool carrier center	50 mm	–
Maximum rotation diameter	φ520 mm	–
Tool holder specification	16 mm × 16 mm	–
Travel
X axis travel	1000 mm	–
Z axis travel	400 mm	–
Y-axis type
Y-axis type	side 4+ end 4 live tools	–
Y-axis travel	210 mm	–
Y-axis dynamic clamping type	ER 25	–
Maximum rotating speed of Y-axis	2500 rpm	4000 rpm
Y-asix fast movement speed	18 m/min	25 m/min
Maximum drilling diameter	Medium carbon steel φ12Aluminum & copper φ14
Maximum tapping diameter	Medium carbon steel M12Aluminum & copper M14
Feed
X-axis fast movement speed	18m/min	25m/min
Z-axis fast movement speed	18m/min	25m/min
X axis servo power	1.5kW	–
Z axis servo power	1.5kW	–
Spindle
Spindle speed	3500 rpm	4000 rpm
Spindle motor power	5.5 kW	7.5 kW
Spindle nose	A2-5	–
Size of applicable hydraulic chucks	6 inch	8 inch
Dimensional & Weight
Dimensions	2120×1620×1970 mm	–
Weight	3000KG	–

Specification	Standard	Optional
CNC Control System	NANJINGKT	SYNTEC/GSK/LNC
Screw	32 mm C3-grade ball screw	–
Guide rail	30 mm P-grade linear guide	–
Spindle	YASHU High rigidity barrel spindle
Spindle motor	5.5 kW servo motor	7.5 kW servo motor
Feed servo motor	1.5 kW servo motor	–
Tpye of bed	30° Slant bed	–
Base Structure	Patented anti-deformation base	–
Clamping	Hydraulic clamping	–

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ45 mm or single work-pieces up to φ50 mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.
Adopting the Yashu’s exclusive control system and electric package to achieve the greatest efficiency of electromechanical coordination.
It comes with a high-speed spindle with 4,000 RPM, providing 5.5kW or 7.5kW powerful output, and patented anti-deformation base to ensure stability for heavy-duty machining.
An extra-large work envelope offers roomy space for live tooling function that provides multi-axis milling and turning and off-center line Y-axis milling capability.
