KX-52J Power Turret with Tailstock Lathe
Model: KX-52 Power Turret
Combines high performance with reliability. Its power turret enables integrated turning, milling, and drilling in a single setup, boosting efficiency. The included tailstock provides rigid support for long workpieces, ensuring superior accuracy and stability.
Bar Materials: up to φ 51mm
Max swing diameter: φ500mm
X-axis travel: 380mm
Z-axis travel: 500mm
| Technical Parameters | Standard Value | Maximum Value |
|---|---|---|
| Processing Capability | ||
| Spindle bore | φ51 mm | – |
| Maximum particle diameter | 400 mm | – |
| Maximum length of workpiece to be processed | 460 mm | – |
| Unilateral stock removal of stainless steel | 3 mm | 4 mm |
| Accuracy | ±0.005 mm | – |
| Surface finish | Ra 1.6 | – |
| Height of tool carrier center | 80 mm | |
| Maximum rotation diameter | φ500 mm | – |
| Tool holder specification | 25 mm × 25 mm | – |
| Travel | ||
| X axis travel | 380 mm | – |
| Z axis travel | 500 mm | – |
| Feed | ||
| X-axis fast movement speed | 22m/min | 28m/min |
| Z-axis fast movement speed | 22m/min | 28m/min |
| X axis servo power | 1.8kW | – |
| Z axis servo power | 1.8kW | – |
| Spindle | ||
| Spindle speed | 3500 rpm | – |
| Spindle motor power | 7.5 kW | – |
| Spindle nose | A2-6 | – |
| Size of applicable hydraulic chucks | 8 inch | 10 inch |
| Dimensional & Weight | ||
| Dimensions | 2550×1500×1950 mm | – |
| Weight | 3500KG | – |
| Specification | Standard | Optional |
|---|---|---|
| CNC Control System | LNC | Others |
| Screw | 40 mm Taiwan SHENGHE ball screw | – |
| Guide rail | 35 mm Germany ROUST roller guide rail | – |
| Spindle | YASHU High rigidity barrel spindle | |
| Spindle motor | 7.5 kW servo motor | |
| Feed servo motor | YASHU servo motor | – |
| Tpye of bed | 45° Slant bed | – |
| Base Structure | Patented anti-deformation base | – |
| Clamping | Hydraulic clamping | – |
- Heavy-duty mineral cast base ensures superior weight distribution, anti-deformation, and vibration absorption for maximum accuracy, smoothness, and rigidity.

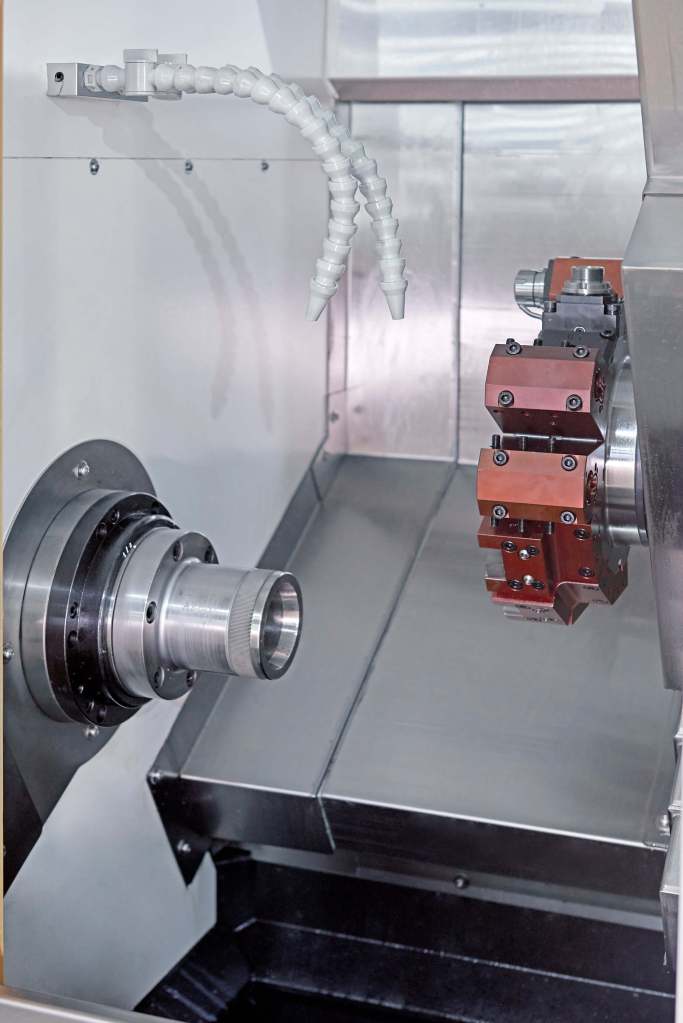

- Equipped with a high-performance power turret, enabling integrated turning, milling, drilling, and tapping operations in a single setup.
Auto Bar Feeder
Automatic Feeding System
Face Live Tooling
Guide Bush
Hydraulic Chuck
Polygon Milling with Radial Live Tool
Polygon Milling
Servo Turret
Tail Stock
Application
