KX-52J Servo Turret + Tailstock Lathe
Model: KX-52 Servo Turret
Built on a heavy-duty casting base for superior rigidity and vibration resistance, this model is ideal for long workpieces up to φ400×500mm, featuring servo turret and tailstock for precise turning and stability.
Bar Materials: up to φ 51mm
Max swing diameter: φ520mm
X-axis travel: 450mm
Z-axis travel: 520mm
| Technical Parameters | Standard Value | Maximum Value |
|---|---|---|
| Processing Capability | ||
| Spindle bore | φ51 mm | – |
| Maximum particle diameter | 400 mm | – |
| Maximum length of workpiece to be processed | 500 mm | – |
| Unilateral stock removal of stainless steel | 3 mm | 4 mm |
| Accuracy | ±0.005 mm | – |
| Surface finish | Ra 1.6 | – |
| Height of tool carrier center | 80 mm | – |
| Maximum rotation diameter | φ500 mm | – |
| Tool holder specification | 25 mm × 25 mm | – |
| Travel | ||
| X axis travel | 450 mm | – |
| Z axis travel | 520 mm | – |
| Feed | ||
| X-axis fast movement speed | 22m/min | 28m/min |
| Z-axis fast movement speed | 22m/min | 28m/min |
| X axis servo power | 1.8kW | – |
| Z axis servo power | 1.8kW | – |
| Spindle | ||
| Spindle speed | 3500 rpm | – |
| Spindle motor power | 7.5 kW | – |
| Spindle nose | A2-6 | – |
| Size of applicable hydraulic chucks | 8 inch | 10 inch |
| Dimensional & Weight | ||
| Dimensions | 2550×1500×1950 mm | – |
| Weight | 3500KG | – |
| Specification | Standard | Optional |
|---|---|---|
| CNC Control System | LNC | Others |
| Screw | 40 mm Taiwan SHENGHE ball screw | – |
| Guide rail | 35 mm Germany ROUST roller guide rail | – |
| Spindle | YASHU High rigidity barrel spindle | |
| Spindle motor | 7.5 kW servo motor | – |
| Feed servo motor | YASHU servo motor | – |
| Tpye of bed | 45° Slant bed | – |
| Base Structure | Patented anti-deformation base | – |
| Clamping | Hydraulic clamping | – |
The use of heavy-duty super casting structural base ensures sufficient weight while also providing anti-deformation and vibration absorption, thereby maximizing accuracy, smoothness, and rigidity. Suitable for processing products with a length of 500 mm and a diameter of 400 mm or less that require tailstock machining using a chuck, and can be equipped with a power turret for turning and milling processing.
Auto Bar Feeder
Automatic Feeding System
Face Live Tooling
Guide Bush
Hydraulic Chuck
Polygon Milling with Radial Live Tool
Polygon Milling

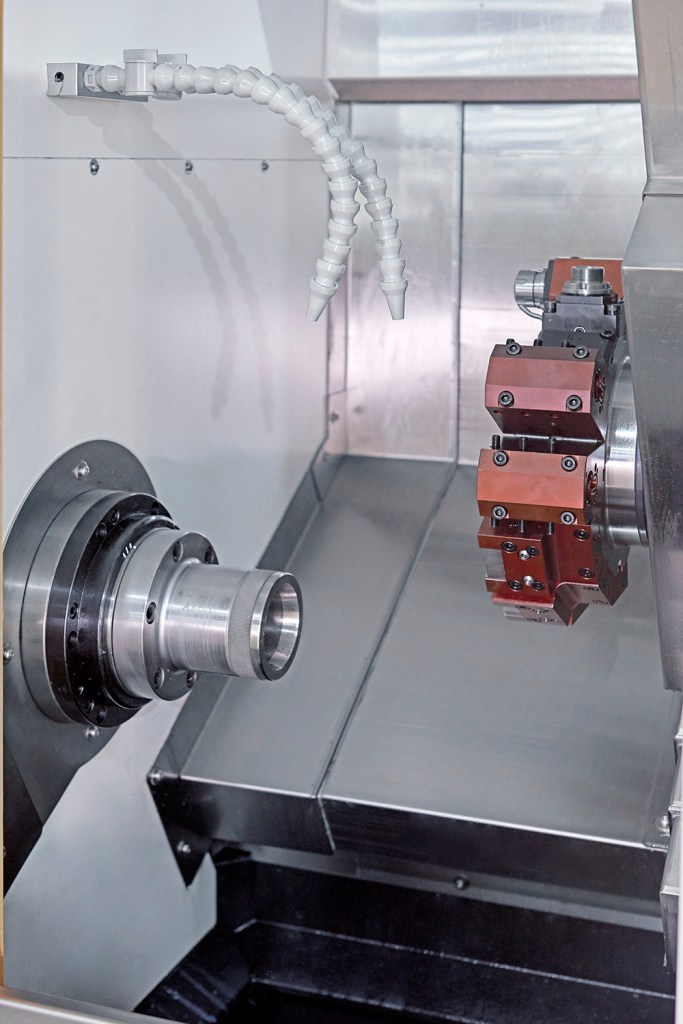

Servo Turret
Tail Stock
