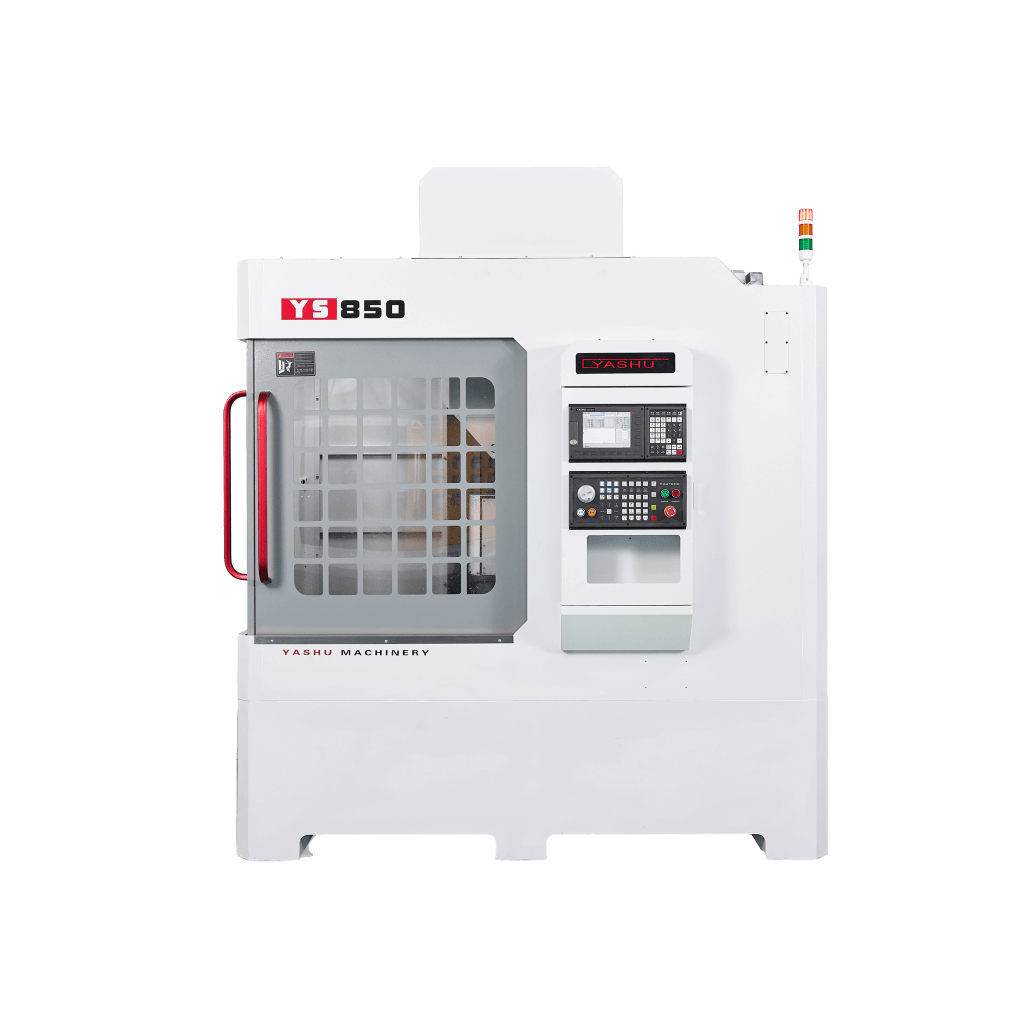

YS-850/ 850D

Model: YS-850/ 850D

Heavy-duty vertical machining center with enhanced table load and extended travel—perfect for high-efficiency cutting and precision machining of larger metal components.

Tool Magazine Capacity : 10 / 12

Maximum Speed of Spindle : 6000/ 8000/ 24000 rpm

Effective travel of worktable: 800x500mm

Get Instant Quote

Technical Parameters Mechanical Spindle Motorized Spindle
Processing Capability
Maximum drilling diameter Aluminium φ60Steel φ45 Aluminium φ14Steel φ8
Maximum tapping diameter Aluminium M22Steel M20 Aluminium M8Steel M6
Maximum milling cutter diameter φ63 φ50
Maximum spped of spindle 6000 rpm 24000 rpm
Taper hole of spindle BT40 BT30
Tool magazine capacity 10 tools 12 tools
Repeated positioning accuracy 0.01mm 0.01mm
Worktable
Distance from worktable to spindle end 170-470 mm 180-480 mm
Effective travel of worktable 800*500 mm
Worktable max.load 400 KG
Travel
X axis travel  500 mm
Y-axis travel 800 mm
Z axis travel 300 mm
Feed
X-axis fast movement speed 18-25 m/min 18-25 m/min
Y-axis fast movement speed 18-25 m/min 18-25 m/min
Z-axis fast movement speed 18-25 m/min 18-25 m/min
Recommended cutting speed 10 m/min 10 m/min
Spindle
Max. speed of spindle 6000 rpm 24000 rpm
Spindle power 5.5 kW 7.5 kW
Spindle type Mechanical Spindle Motorized Spindle
Spindle taper BT40 BT30
Dimensional & Weight
Dimensions 2220×1710×2460 mm
Weight 3500 KG

Specification  Standard Optional
CNC Control System YASHU Huazhong, others
Screw 32 mm C3-grade ball screw –
Guide rail 30 mm P-grade linear guide –
Spindle  YASHU Others
Spindle motor YASHU Huazhong, others
Feed servo motor X,Y- 1.5kW, Z- 2.6kW YASHU Huazhong, others
Optional 4th axis center height 125 mm / 170mm –
Optional 4th axis motor power 0.75 kW/1.2kW –
Optional 4th axis system YASHU HUAZHONG/SYNTEC/GSK
Optional 4th axis servo YASHU HUAZHONG/SYNTEC/GSK
Optional 5th axis center height 160 mm –
Optional 5th axis motor power 0.4 kW / 0.75 kW –
Optional 5th axis system YASHU HUAZHONG/SYNTEC/GSK
Optional 5th axis servo YASHU HUAZHONG/SYNTEC/GSK
  • Yashu’s CNC machining centers feature high speed, high accuracy, high efficiency, reliability and high safety that suitable for batch processing and production of small hardware parts.
  • CNC machining centers which integrating cutting, drilling, tapping functions into one are mainly used to process light small metal with high processing efficiency and precision.
  • Adopting the Yashu’s exclusive control system and electric package to achieve the greatest efficiency of electromechanical coordination.
  • Patented anti-doformation base supports fast machining actions and is stable enough to resist vibration during bar processing which improves accuracy and surface finish.
4th Axis With Tail Stock
